Complete Faucet Making Machine

Automatic Faucet Grinding Machine

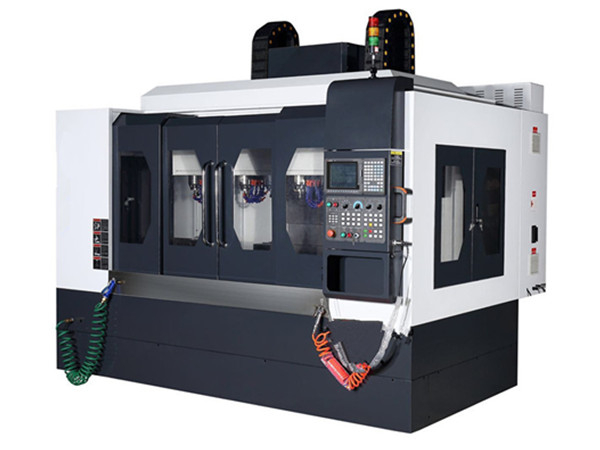

Automatic Faucet Grinding Machine

Automatic Faucet Grinding Machine


The machine tool castings are made of high tension MIHANA cast iron,and after two manual aging treatment,the stability is good,the strength is high,the accuracy is stable and reliable.

  • Item NO.:

    VMC-V8
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    30 DAYS
Product Details

 Automatic Faucet Grinding Machine

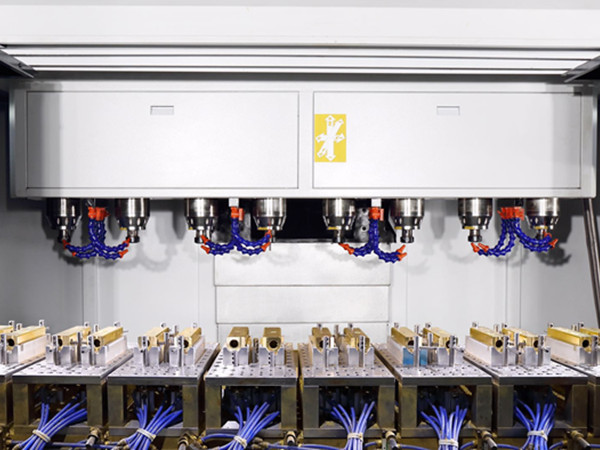

The spindle system of machine tool are used for constant torque and high speed electric spindle,the maximum speed of 18000rpm,the important parts are by strengthening treatment,and adopt the world famous brand NSKP4 special bearings for spindle and use high-quality high-temperature grease for it,whole spindle assembled in constant temperature conditions,through the computer balance correction and running test,it make the whole spindle use long life,high precision,strong reliability.


Model No.VMC-V8
X-axis (left and right stroke): 420mm
Y axis (front and back stroke): 530mm
Z axis (up and down stroke): 500mm
Spindle center to column guide rail distance: 550mm
Spindle end to table surface distance: 100-600mm
Y-axis rail spacing: 700mm
Working table size: 2100×500mm
Type T groove: 5×18×102
Table maximum load weight: 600KG
Taper hole of spindle: ER32
Spindle speed: 18000rpm
Spindle motor: 5.5*8KW
X-axis motor: 2KW
Y-axis motor: 2KW
Z-axis motor: 3KW
Three-axis maximum cutting feedrate: 10m/min
Three-axis fast moving: 20m/min
Positioning accuracy: ±0.04mm
Repeatability precision: ±0.05mm
Size: 3000×2300×3000
Pneumatic power: 6-9kg/cm2
Power supply capacity : 50KW
Weight: 7000KG

Name

Brand

NC system

SYNTEC(Taiwan)

NC system

Mitsubishi(Japan)

Servo variable frequency drive

Domestic

X,Y,Z axis servo motor

YASKAWA set(Japan)

X,Y,Z axis servo motor

MITSUBISHI full set(Japan)

Electric spindle motor

Domestic

Spindle bearing

THT/NSK(Japan)

Screw rod bearing

THT/NSK(Japan)

Linear guide rail

YINTAI/SHANGYIN(Taiwan)

Ball screw

YINTAI/SHANGYIN(Taiwan)

Tool magazine

BEUU(Taiwan)

Coupling

Domestic

Heat exchanger

Domestic XIDA

Compensating cylinder

Domestic

Automatic lubrication system

Domestic

Coolant system

Domestic Luokai

Lighting system

Domestic LED

Alarm lamp

Domestic Southern China Tiancheng

Contactor

France Schneider

Breaker

France Schneider

Spindle oil cooler

Domestic

Electric

France Schneider

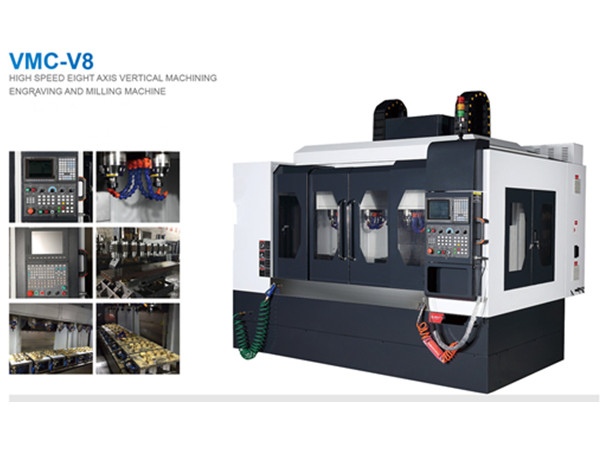

Eight Axis Vertical Engraving and Milling Machine

Automatic Faucet Grinding Machine

The Machine Tool Castings



Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.

We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
