Brass Spindle Making Machine

Automatic Spindle Lathe Machine

Automatic Spindle Lathe Machine

Automatic Spindle Lathe Machine

Hydraulic automatic lathe main process material is brass and aluminum,it can process inside and outside thread,chamfer,groove,slot,tapping, mantle fiber,flat end and turning.

  • Order(MOQ):

    1
  • Payment:

    TT
  • Market Price:

    $3000
  • Price:

    $3000/5000
  • Price Range:3000 - 5000/$1
  • Product Origin:

    Zhejiang
  • Color:

    GREY
  • Shipping Port:

    ningbo
  • Lead Time:

    15 days
Product Details

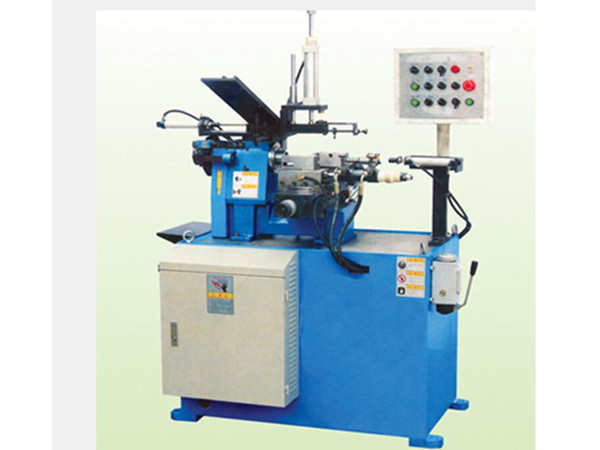

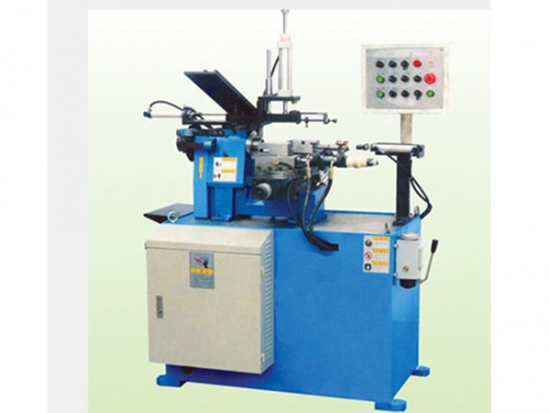

Automatic Spindle Lathe Machine


Hydraulic automatic lathe used for various industries, especially the spindle ,cartridge, the quick opening of valves, slowly open, nut, valve body, valve core in valve , plumbing and pipe fittings industry.


Hydraulic automatic lathe can designed to be single cylinder,double ylinder,three cylinder,four cylinder according to workpiece’processing steps in order to make finished products one time.if workpiece is long we can use long hopper load them and if short workpiece we can use vibration plate load them. the clamping is pneumatic system which are very fast.the  Feed adopts hydraulic system and PLC control, This structure can greatly improve the benefit of processed products, reduce the production cost.


Hydraulic automatic lathe adopts hydraulic drive technology and control available in a wide range of stepless speed regulation, with good directional control and speed in performance, easy to realize automatic work cycle.

controller
Delta PLC and hydraulic system
transformer
output 220v/380v
base
Cast iron/Iron plate
machine body
Cast iron
guide
hard guide(L*W)=510*210mm
collet
spring collet
Vibration plate
Stainless steel vibration plate
Hydraulic station
made in china
The hydraulic oil cylinder
made in china
air cylinder
made in china
spindle bore diam
38mm
Drawn pipe diam
32mm*1.5
bearing
Paired bearings 7210/7211
cooling system
cooling fan
lubrication system
Auto centralized lubrication system
protection cover

Automatic Spindle Lathe Machine

Automatic Spindle Lathe Machine

Automatic Spindle Lathe Machine


Automatic Spindle Lathe Machine


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
