Vertical three spindle compound machine

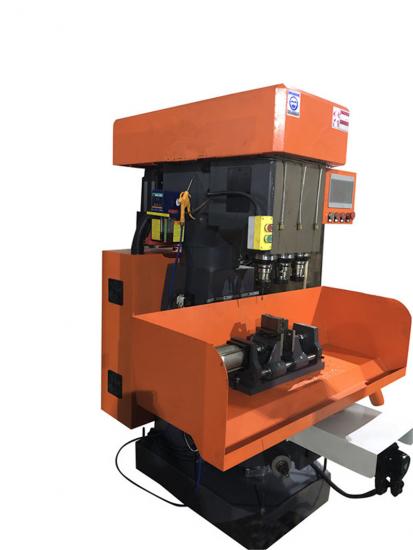

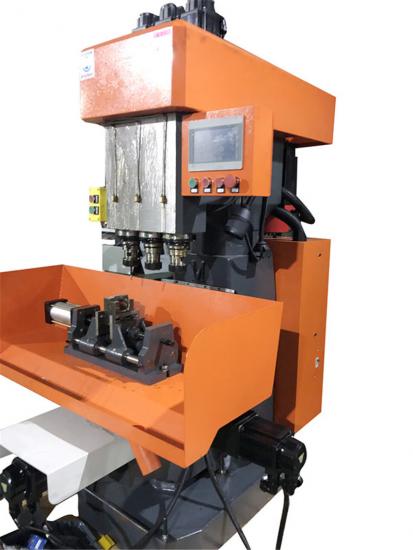

Vertical three spindle compound machine

Three Spindle Drilling &Tapping Machine,One time clamping, complete drilling, reaming, tapping process.

  • Item NO.:

    ZSK4121×2
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    ORANGE
  • Shipping Port:

    XIAMEN
  • Lead Time:

    30 DAYS
Product Details

Vertical three spindle compound machine

1.Triaxial compound machine, spindle feed by screw, a main servo motor drive triaxial processing

2. Drilling spindle 1.2kw servo motor feed, Tapping spindle is fed bythread die or screw rod is selected by customer
3.Sliding table part drive mode: manual, pneumatic, screw rod drive can be selected, different configuration with different function

NO.

 Item Name

Specifications

 Remark

1

X axis maximum stroke (screw)

300mm

2

Y axis maximum stroke (screw or manual)

170mm

3

Spindle sleeve diameter

Ф105mm



4

spindle taper

MT4



5

Maximum stroke of drilling spindle

120mm

6

Maximum stroke of tapping spindle

120mm

7

spindle spacing

120mm

8

Spacing between spindle end face and worktable

240/480mm

9

Maximumdrilling diameter

Ф50mm



10

 Maximum tapping diameter

Ф50mm

11

Z2、Z1、Z3 shaft speed

0-3000 RPM

12

 Spindle motor power

3.7Kw servo power or 3kW/4P



13

Outside size: length × width × height

1200×940×1500

14

Machine net weight

1350KG

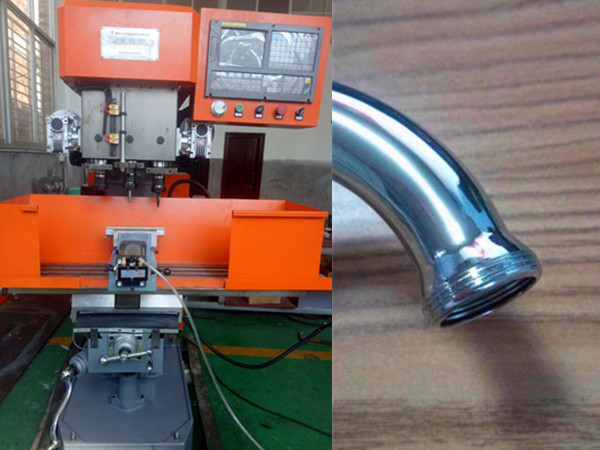

Vertical three spindle compound machine

Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.



Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Brass Valve Punching Machine
Hot Sale Brass Valve Making Machine

XC-32 is automatic brass nut making machine, one time finish, and very precision, and high efficiency .

simple machines and compound machines

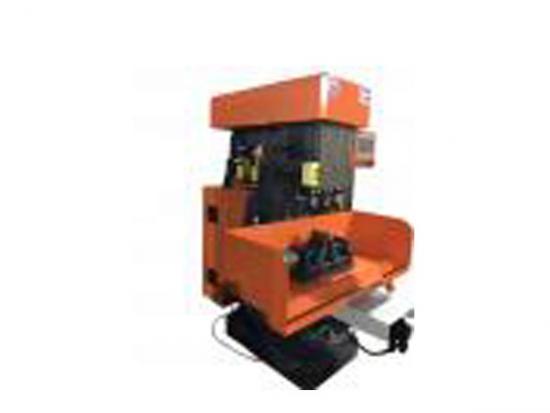

Vertical six-spindle drilling tapping and milling compound machine
