Valves Machine Production line

Automatic Molding Machine

Automatic Molding Machine

Sand molding machine

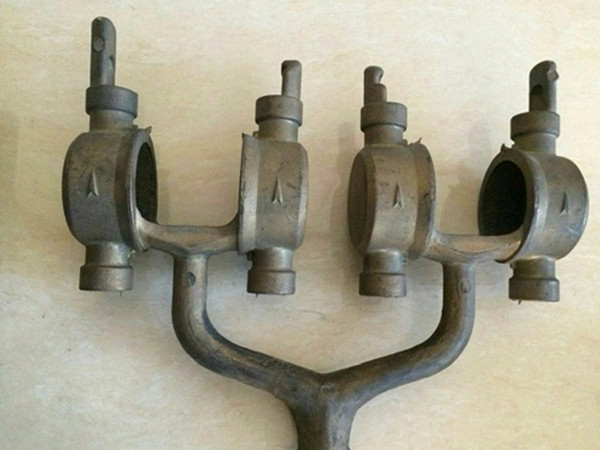

sand slinger molding machine used in foundry equipment.Application fields: valves,sanitaryware,door hardware,household appliances auto parts ect.

  • Item NO.:

    4050
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    $78000
  • Price:

    $68000
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    20 DAYS
Product Details

Sand molding machine Features


1. Sand slinger molding machine with good stability, low energy consumption, long service life.

2. High degree of automation, easy to operation, reduce the labor.

3. High degree of standardization, good interchangeability of accessories, low maintenance costs, fast.

4. According to the process needs to be compacted inside and outside, making sand mold better quality.

5. Automated spray atomizing release agent, making stripping smooth, smooth casting surface, sand no defect.

6. The electrical cabinets and hydraulic stations are set inside the equipment, compact structure and easy to maintain.

7. Low equipment failure rate, fault can be self-diagnosis.

8. Big inclination angle of mold cavity,can meet different products' casting techmique.
9. Adjustable rotating speed of mold cavity,improve mold exhausting.
10. PLC control,full hydraulic drive,high dependability.

11. Urgent stop button in set on the machine body,it is for easy.
12. It is convenient installing and regulating.


Contents
Parameters
Sand box size
500*600mm
Sand box thickess
Above the box80-190mm ;
Below the box 110-190mm
Molding rate (Sec/mold)
30-40 S/per mold
Compaction pressure
≤14Mpa
Air consumption
0.3cm³ (normal/mold)
Clay sand humidity
2.5%-3%
Type of drive
Pneumatic-Hydraumatic
Template thickness
15-25mm
Total power
16kw
Net weight
8.8T
Dimension
3600*2200*3200mm

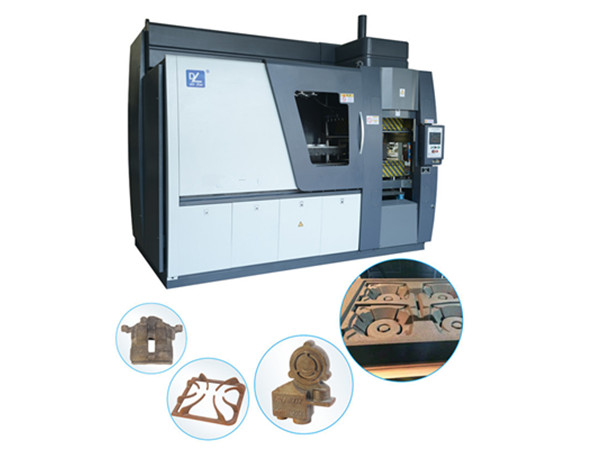

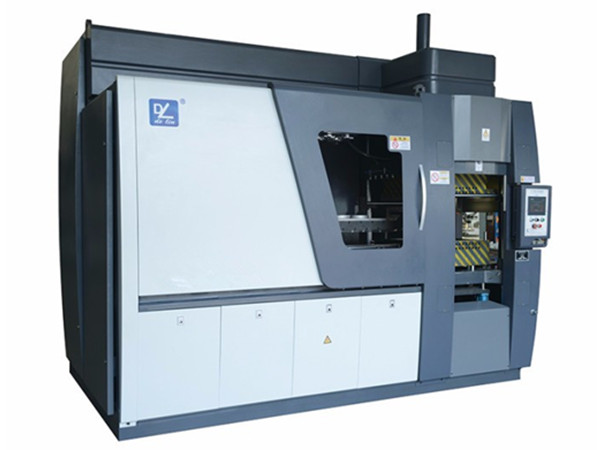

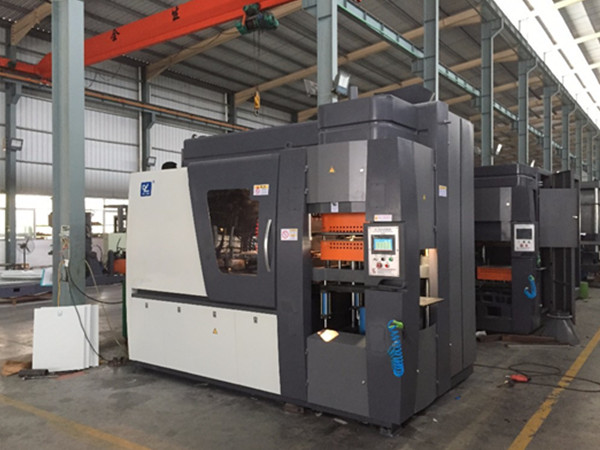

Automatic Molding Machine

Automatic Molding Machine

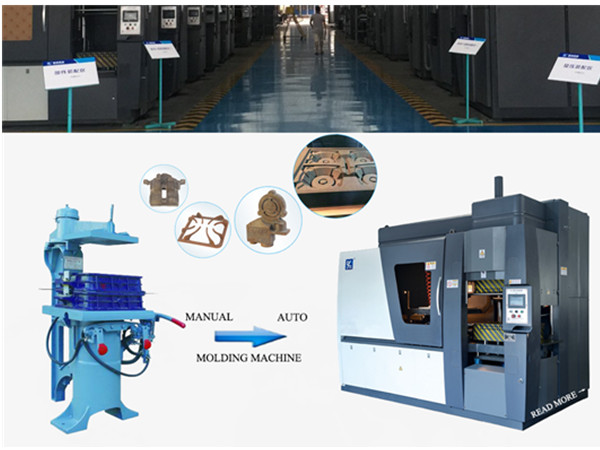

Sand Slinger Molding Machine

Sand Slinger Molding Machine

Slinger Molding Machine

Slinger Molding Machine


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During automatic Molding Machine,valves machine production line production, watching the machine quality and testing machine.and take pictures or make video for customer checking.


After Sales

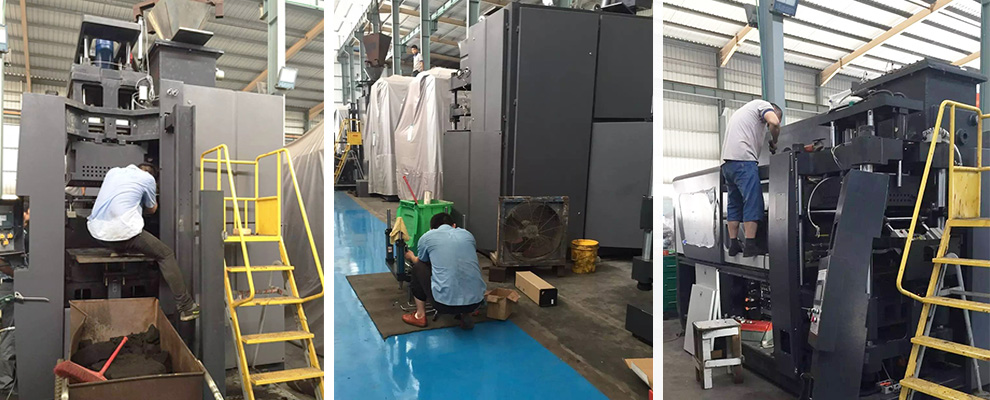

We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

  • #
  • #
  • #
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
