Vertical Molding Machine

Vertical Molding Machine

Vertical molding machine Features




Its main function includes sand feeding and compacting, which is to feed the molding sand and compact them in the sand box with the different compacting methods,in order to make the sand mould having a certain strength during transportation and pouring.

  • Item NO.:

    Z145
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Market Price:

    $1500
  • Price:

    $1300
  • Product Origin:

    CHINA
  • Color:

    BLUE
  • Shipping Port:

    XIAMEN
  • Lead Time:

    20 DAYS
Product Details

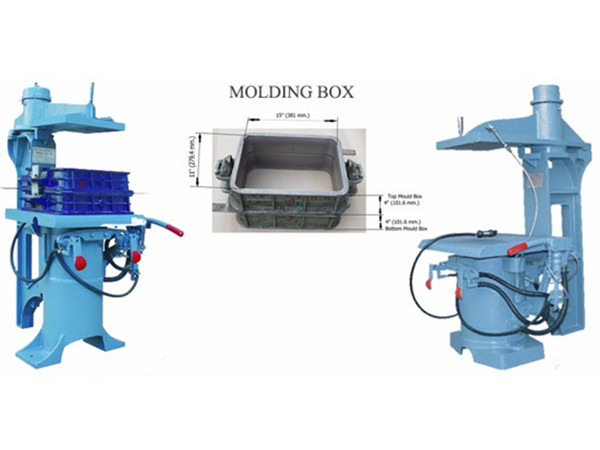

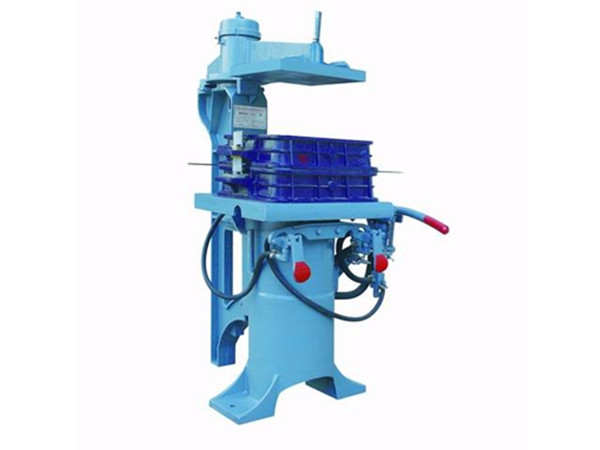

Vertical molding machine

Usage:
Brass Valves, Brass Fitting Producting

Advantage:
Production from scrap to finished products
Processing Machine:
CNC, Lathe, Drilling Machine
Working Field:
Hardware, Bearing, Faucet, Auto Parts, Appliance

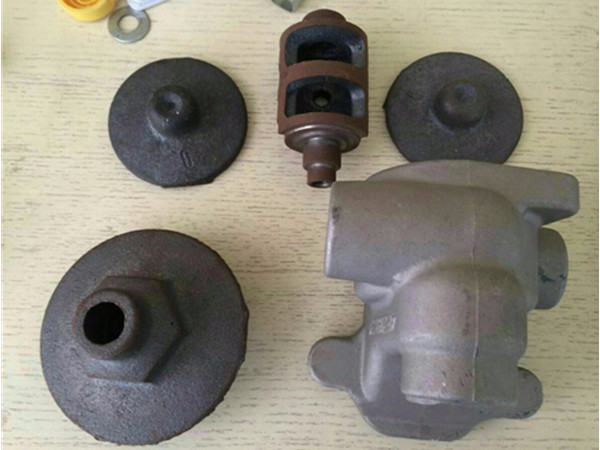

Final products:
Brass valve,PPR fitting, brass billet and other brass product


Contents
Parameters
Dimension
850*700*1380mm
The biggest size of core boxes
300*400*150/100 mm
Compaction stroke
110mm
The size of table
470*540mm
Jolting power
380kg
Compaction power
3000kg
Weight of machine
280kg
Pressure of air-compressed
5.6Mpa
The largest area of core boxes(pressure:0.25Mpa)
2700 cm2
The largest area of care boxes
(pressure:0.5Mpa)


600 cm2
The need air of a box
0.13 m3
Vertical Molding Machine

Sand Slinger Molding Machine


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
