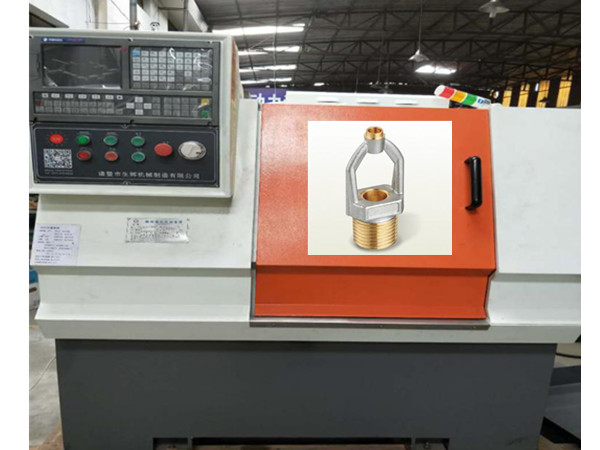

CNC Lathe Process Fire Sprinkler Blank

CNC Lathe Process Fire Sprinkler Blank

CNC Lathe Process Fire Sprinkler Blank

Main equipment: CNC Machining Center, Cape milling , lathe, mill - ping, line cutting, EDM machine.CNC lathe is mainly used for machining shaft, disk type and so on rotational parts.


  • Item NO.:

    SHS-25PG
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Color:

    Grey
  • Shipping Port:

    Ningpo
  • Lead Time:

    30 days
Product Details

CNC Lathe Process Fire Sprinkler Blank


The equipment operator 1 person can control 16-20 equipment.



Name & Model No.


CNC


SHS-25PG


Note


The parameters of the equipment are as follows


Name


Unit


Specification



Spindle bore


mm


Ф25fixture M32*1.5×90-110



Spindle max. speed


r/min


3000-4000   4000-5000(  selection



Main shaft nose end form



A2-4



main shaft structure



Precision barrel spindle



operating system



KT : KT820Ti




Kahndi KND100Ti-1000Ti



X travel


mm


Ф600one-sided300 HIWIN



Z travel


mm


180



C axis


mm


Adjustable



tool apron


mm


center height 45  (Length * width * height: 140*70*50



lead screw


X axis




Z axis




C axis


Tetra-core positioning precision assembly 2A-3A (pretension structure



Wire rod bearingNIN)


X axis


BST20*47



Z axis


BST20*47



C axis


principal axisAdjustable



spindle motor



selective breeding ordinary motor 3.0KW

servo motor3.0KW



X Z Motor connection mode



Coupling



SizeLength * width * height


mm*mm*mm


1388*1250*1480



Weight


1500KG



Main configuration of rear electric box



Direct check of each connection line




inverter invoee  3PH/380V 4.0KW




Three coherent Voltage Power Inverter  GCJ-270-1 1500VA




servo driversSG-20A-X-Z




Model No.


Product


processes

Processing time / PCS


Note


25PG


Fire sprinkler


First procedure outer tooth G1/2


23 seconds*    9 hours=1400


4 pcs Tool


25PG


Fire sprinkler


Second procedure M5


22 seconds*    9 hours=1470


4 pcs Tool and 1 pcs screw tap



CNC Lathe Process Fire Sprinkler Blank


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
