CNC Rotary Transfer Machine for Gate Valve

CNC Rotary Transfer Machine for Gate Valve

CNC Rotary Transfer Machine for Gate Valve



Easy operation, can be equipment with PLC controller;Energy saving, Environmental protection, Low pollution level;.Miniature and light weight, Economic Space Occupation, Easy installation.

  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    GREEN
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

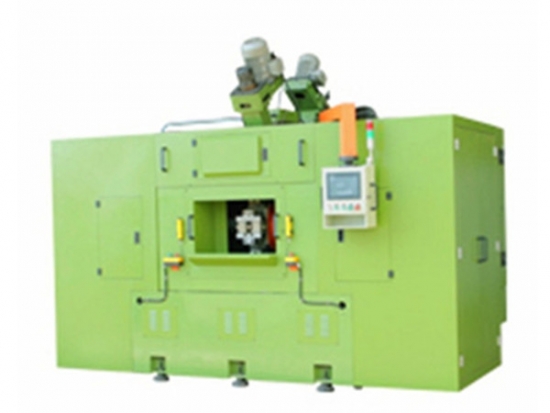

CNC Rotary Transfer Machine for Gate Valve


1.Applicatiom water  segregator body 3/4"-1".

2.Working steps left boring/deep drill/tapping.Middle servo slide bore/drill/right boring/deep drill/tapping.
3.power unit head can be distributed by customer requirment.

4.Table operation mode.Hydraulic 6 indexing furntable.

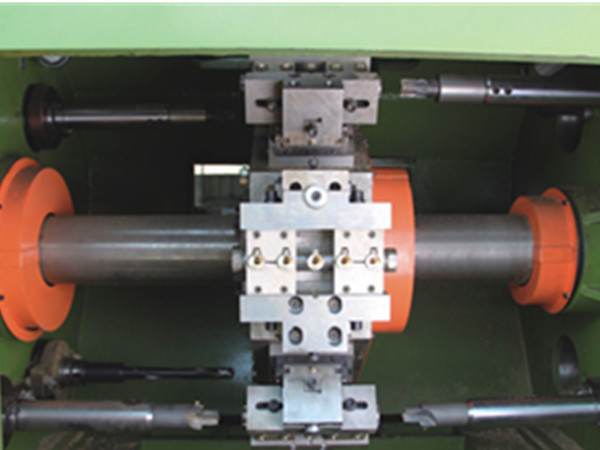

4.Fixture type:long stroke hydraulic bench vice.
5.Loading/unloading :manually loading/unloading.
6.Tool cooling system inject gas cool,tapping spray cool.



Spindle sleeve specification

φ110X380mm

Range of spindle speed

boring 680r/min,drilling:940r/min,tapping 556r/min (adjustable)

motor power

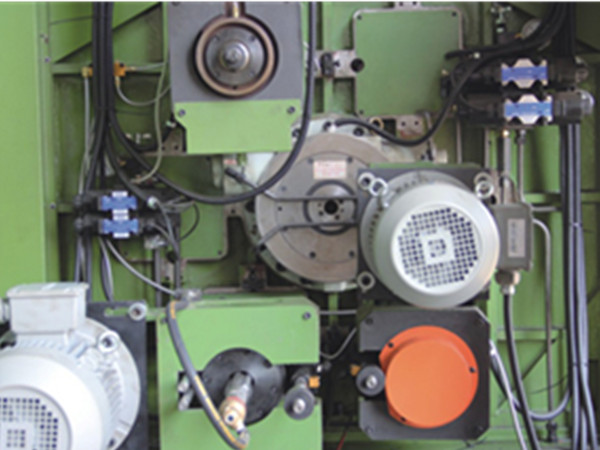

boring:3kwX4p=3pcs,Drilling:4kwX4p=2pcs,Tapping:2.2kwX6p=3pcs

hydraulic pump motor:3.75kwX4p=2pcs

hydraulic oil specification

runlaibao46#F antiwear hydraulic oil

spindle shank specification

BT-40

Operation voltage

3P-380VAC±5%(50HZ)

Total power

32.5kw

 overall dimension of machine

3800X1780X2800

Machine weight

7500kg

CNC Rotary Transfer Machine for Gate Valve

CNC Rotary Transfer Machine for Gate Valve



Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
