Brass Spindle Making Machine

High Performance Fixed Table Press

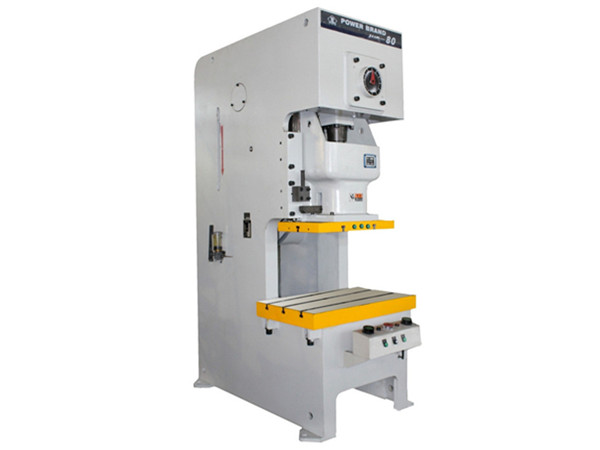

High Performance Fixed Table Press

High Performance Fixed Table Press

Steel welded frame,ageing treatment,high rigidity,stable precision;Crankshaft placed in vertical,compact structure;Six-side extra long rectangle guides of the slide,the surface of slide guides is bronze panel,in high moving precision and high abrasive resistance.

  • Item NO.:

    J21M
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    WHITE
  • Shipping Port:

    XIAMEN
  • Lead Time:

    30 DAYS
Product Details

High Performance Fixed Table

Pneumaulic dry friction clutch-brake with flexible movement and reliable performance;

Imported PLC centralized control electric system,safety dual valve control air system realize flexible move,single and continuous stamping,urgent stop and other operations safety and reliable;

Optional photo-electronic safety device,transmission output axle,feeder,air cushion and other optional accessories are available for this power press subject to user's demands.



Nominal Pressure: 2000kN

Nominal Pressure Stroke: 6mm

Stroke of Slide: 180mm

Strokes: 35per / Score

The maximum die height: 450mm

Die height adjustment: 110mm

Table size: 760×1130×160mm

Slider bottom size: 650×850mm

Side hole size: 800×370mm

Worktop Plane to ground distance: 1030mm

The distance between the columns: 1200mm

Main motor power: 18.5KW

Air pressure: 0.55MPa

Temperature: -10℃—40℃

Relative humidity: ≤90%RH

Voltage: 380V/50Hz±10%

Control voltage: 220V/50Hz±10%

Processing materials: Cold-rolled or hot-rolled steel


Basic configuration

No.

Name

Brand

1

Steel welded frame/Fireplace annealing

Own production

2

Dry clutch

High performance and high torque clutch

3

Bearing

HRB

4

Skeleton oil seal

NAK

5

Safety double valve

Toyooki

6

Hydraulic overload protection

SHOWA

7

Hydraulic overload high pressure oil seal

DICHTOMATIK

8

Modem motor

Fute/Yuejin/Feida

9

Electric grease main lubrication system

Liubian

10

Balance cylinder manual lubrication pump

Ishan

11

Gas source processing two parts, pressure regulating valve

SMC

12

Main motor

SIEMENS(≤37kW),Er Lan(≤37kW)

13

Programmable Controllers PLC

Mitsubishi

14

Integration panel (including electronic cam)

DUCH

15

touch screen

Kunluntongtai

16

Preset counter (electronic cam built-in)

DUCH

17

AC contactor

Schneider

18

Hands button

Fuji Electric

19

Switch, open air, switching power supply

Schneider

20

Mold lighting

Guangzhou Otenn

21

Second off the detection switch

Schneider

22

Bolts, screws and other fasteners

Taiwan Gem-Year

23

Blowing (blowing) device 1 group

Jiangsu CAAP

24

Copper rail


Special alloy copper

High Performance Fixed Table Press


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
