Brass Spindle Making Machine

Precision CNC lathe

Precision CNC lathe

Precision CNC lathe

We  can set the tool’s life in the program set the quantity of processed products auto alarm reduce scrap prevent tools excessive damage Spindle have the function of indexing and positioning

  • Item NO.:

    CK0640
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Ningpo
  • Lead Time:

    30 days
Product Details

Precision CNC lathe

precision numerical control machines,industrial robots plus intelligent logistics,intelligent plant mass integration and servo mill wheels.

we have long been devoted to precise CNC machines and industrial robots plus the field of intelligent logistics and centers on intelligentize and unmanned factories,so that we can provide the best personalized applications and “turn –key ”project.



Name

Unit





Model



CK0640

clamp Ф

mm

Ф56

Max.swing over bed

mm

Ф310

Max.swing over slip

mm

Ф150

Max.processing  length

mm

200

Spindle diameter

mm

Ф48

X axis travel

mm

280

Z axis travel

mm

300

Spindle unit

Spindle speed

r/min

0-5000



Main motor power

Kw

4/3.7



Way of clamp

Hydraulic

Feed speed

Rapid traverse of X axis

m/min

12

Rapid traverse of Z axis

m/min

12

Precision

X axis

mm

0.001

Z axis

mm

0.001

Power



Voltage

V

380

Frequency

Hz

50

Size

L*W*H

mm

1400*1200*1700

Weight



Kg

1500

Cooling

water pump Power

W

90









Name

Model

Quantity

Brand

Place of origin

Remark

Main Configuration

Control system

SYNTEC 6BT(3 axis )

1

SYNTEC

Taiwan

Motor

4KW

1

α

China

4.0/3.7KW

Servo motor



1

Maxsine

China



Linear



1

Hiwin

Taiwan



Bear of spindle



1

NSK

Japan

P5级

Lead screw

X:2504-4  Z:3206-4

1

启尖

China

P4级

Bearing

4

HRB

China

P5级

Lubricating pump

集中润滑系统

1

迅润

China

Hydraulic component

1

yuken

Taiwan

Water pump

AB-25:25L/min

1

远东

China

Short-phase protector

1

schneider

France

AC contactor

1

schneider

France

Control module

1

Omron

Japan

Switching power

1

schneider

France

Screw nut



3

宇晨

China

Coupling



2



China

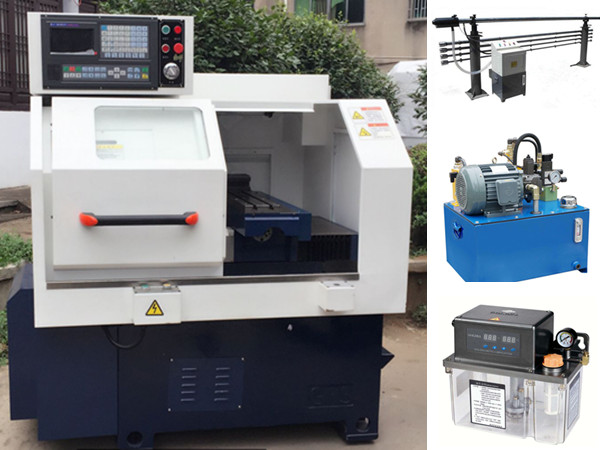

spindle unit           hi-speed rotating         collet chuck

                       hydraulic cylinder



Milling cutter power unit       hydraulic system        coupling



bar feeder                             ball screw



 lubricating pump                       linear guide






1)bar feeder

2)turning outer circle

And end face

3)two end milling flat











4)turning the outer thread ;cutter off

Precision CNC lathe
