Brass Spindle Making Machine

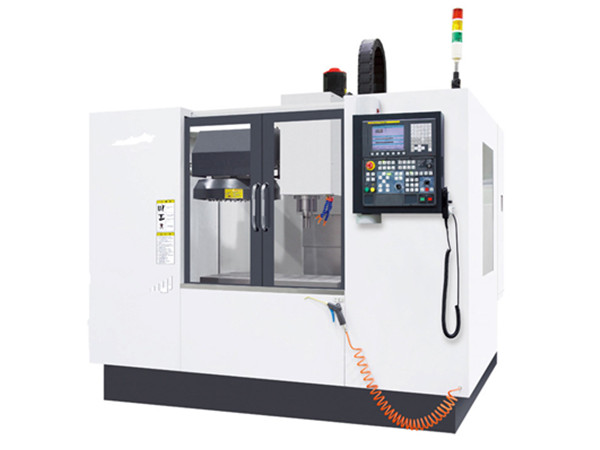

Vertical Machining Center

Vertical Machining Center

VMC- HDL650/850 can work for the workpiece which working travel is 800x500x500mm.It suitable for aerospace, automotive parts, machining and mold manufacturing,can achieve once clamping of variety disk type, plate type, shell, cam, mold and other complex parts.It can complete Drilling, milling, boring, reaming, reaming,tapping.

  • Item NO.:

    VMC-HDL650/850
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    Qinhuangdao
  • Lead Time:

    30 DAYS
Product Details

Main features

Vertical Machining Center is a new VMC with high efficiency and high rigidity which researched and developmented by our company.

This machine has the advantages of strong rigidity, stable precision, low failure rate and good reliability,it is different from current 850 models.It has strong overall structure, the structure of the machine tool is optimized by finite element analysis, the rigidity is stronger, and the structure is more stable.

Rib type machine head design: the inner ribs are increased, the rigidity of the structure is strengthened and the machining stability is greatly improved.

High rigidity spindle can be equipped with large torque device production efficiency increased by more than 30%.



Mainly used in



①  The rigid machine tools must have a low failure rate, good reliability of production occasions.



② It is particularly suitable for processing occasion with high speed reciprocating motion of spindle box



③ Short throat ,high rigidity and compact structure with large torque device to improve more than 30%  production efficiency.It is suitable for heavy load production of ferrous metals.


Model

HDL650

HDL850

Unit

Working table

Dimensions

900*420

1000*500

mm

Max.Loading

600

600

kg

Processing range

X Axis Travel

650

850

mm

Y Axis Travel

400

500

mm

Z Axis Travel

500

540

mm

Distance from spindle end face to working table surface

Max.

630

690

mm

Min.

130

150

mm

Z-Axis to space height

530

580

mm



Spindle

Bore-hole(7:24)

BT 40



Spindle speed

50-8000

r/min

Motor power

7.5/11

kw

Feed

X/Y/Z Axis

30

m/min

Feed speed

1-20000

mm/min

Tool magazine

Form

Hat form



Capacity

16

T

Machine dimension(L*W*H)

2500*2400*260

3150*2400*3000

mm



After service


1. Ensure the equipment package meets the requirements of moisture, rain, rust, anticorrosion and shockproof, the mark is clear and correct, make the goods safe, timely delivery to the site.


2. High-quality and fast technical service

In order to better ensure the normal operation of the equipment, timely answer user questions, help users solve problems, the company special maintenance center. Responsible for equipment maintenance and technical consulting services. The maintenance center is responsible for providing free technical consulting services to customers at any time.


3. free debugging for users, open

The engineer shall be responsible for the installation, commissioning, opening and testing of on-site equipment. After the equipment has been successfully debugged, the supplier shall provide the test results in writing to the user, and the supplier's technical personnel may withdraw from the site only with the consent of the user.


4. Regular inspection

Our company sets the inspection system as one of the routine maintenance work, that is, the company organizes the equipment inspection once every six months. With the participation of designers, and listen to the user response to the problems and suggestions, constantly improve the software and hardware functions and quality of the product.


5, quality guarantee period

Warranty period: the warranty period of equipment under the contract is 12 months after the successful installation and commissioning. The cost of spare parts (except force majeure factor and artificial damage) is borne by the supplier during the warranty period.


6. lifelong maintenance to ensure the interests of users

Huadian CNC equipment Manufacturing Co., Ltd. Equipment from the date of acceptance, normal conditions (in addition to force majeure factors and artificial damage, free warranty for 12 months. Warranty expires. The company continues to provide lifetime free service, if you need to replace spare parts, only charge cost.


7. Establish user files and improve product quality

In addition to carrying out customer technical consulting service, the company maintenance center is also responsible for receiving and collecting customer complaints and consulting information to ensure that the questions and requests raised by users can be dealt with in a timely manner. And to track and verify the handling situation. At the same time to establish user records of the use of products to provide the basis for future product quality improvement. We will continue to strive to improve. To provide customers with the most satisfactory products and services.


8. Spare parts reserve and mode of supply

Our company reserves all kinds of equipment fittings for a long time, can choose express delivery, china railway express, air transportation, road distribution and so on according to the request of the user. The emergency spare parts can be transported to the user's scene within 24 hours


9. Technology upgrade service

Our company provides the software upgrade version free of charge to the user. When we need to change the PLC program or the computer program due to the special requirements of the user and the process change, we are responsible for the change and will not charge for the software.
