What is Gravity casting machine?

  • December 13, 2021

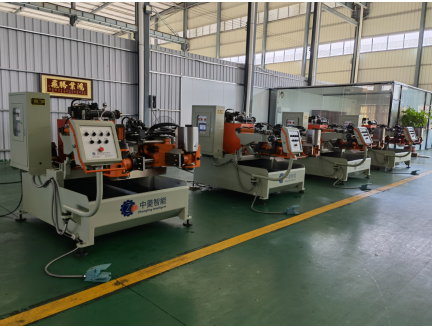

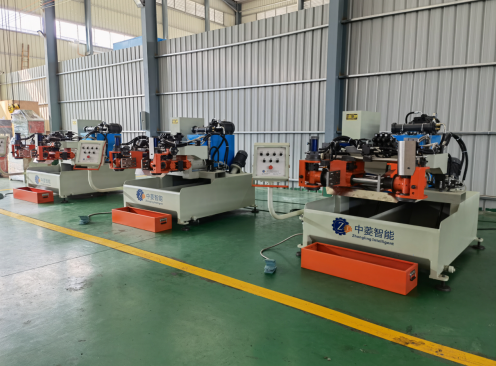

ZL-450-B Gravity Casting Machine According to the principle of gravity casting, our company specially designed the gravity casting machine. It is widely used in the gravity casting of brass. It has simple operation, novel design and high production efficiency. It has introduced advanced technology from Italy and South Korea. Meet demand.

The models are divided into: ZL-450-B gravity casting machine ZL-550-B gravity casting machine.


ZL-450-B Gravity Casting Machine

Main specifications and technical parameters450-B

1. Maximum model size φ450 mm

2. Maximum model working distance 450 mm

3. Maximum model weight 130 kg

4. Maximum merging distance ≤250 mm

5. Oil pressure 40-60 KPa

6. Side pouring angle 0-90 degrees

7. Positive pouring angle 0-110 degrees

8. Hydraulic oil 165L 68# compressive

9. Total machine power 5.5 KW

10. Net weight of the whole machine 1750 kg

11. Appearance size of equipment 2250×2160×1560 mm

◆Device Configuration450-B

① Graphite water tank: 6mm thickness 304# stainless steel plate.

② Hydraulic system: Taiwan brand hydraulic station and hydraulic accessories.

③ Circuit components: Snyder, Omron, Siemens, Taiwan Mingwei.

④ Mixing part: Xiamen Eagle brand mixing motor, stainless steel mixing shaft, stainless steel blades.


ZL-550-B Gravity Casting Machine According to the principle of gravity casting, our company specially designed the gravity casting machine. It is widely used in the gravity casting of brass. It has simple operation, novel design and high production efficiency. It has introduced advanced technology from Italy and South Korea. Meet demand.



Main specifications and technical parameters550-B

1. Maximum model specification φ550 mm

2. Maximum model working distance 550 mm

3. Maximum model weight 150 kg

4. Maximum merging distance ≤280 mm

5. Oil pressure 40-60 KPa

6. Side pouring angle 0-90 degrees

7. Positive pouring angle 0-110 degrees

8. Hydraulic oil 165L 68# compressive

9. Total machine power 5.5 KW

10. Net weight of the whole machine 2200 kg

11. Appearance size of equipment 2350×2200×1860 mm

Device Configuration550-B

① Independent water tank: 6mm thickness 304# stainless steel plate.

② Hydraulic system: Taiwan brand hydraulic station and hydraulic accessories.

③ Circuit components: Snyder, Omron, Siemens, Taiwan Mingwei.

④ Mixing part: Xiamen Eagle brand mixing motor, stainless steel mixing shaft, stainless steel blades.


Choose D&S Automatic Co.,Ltd we provide best quality automatic machine for you.


D&S Automatic Co.,Ltd. located at the China plumbing town of Fujian Nan'an,It is a professional machine company. We supply you modern facilities,such as faucet, valve, brass fitting, cartridge, brass fittings, teflon tape and all kinds of machines.
