Products

Brass gravity die casting machine

Brass Gravity Die Casting Machine which is easy opeation, solved the problem that big moulds that workers could not move it, it is au tomatic made by machine.

  • Item NO.:

    DS-Z500
  • Order(MOQ):

    1
  • Price:

    $18000/20000
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    30 DAYS
Product Details

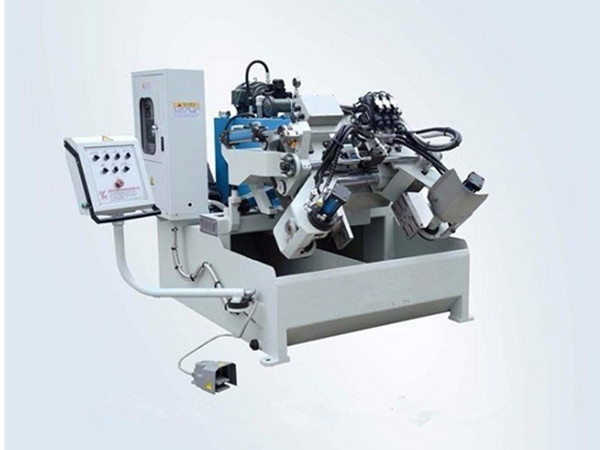

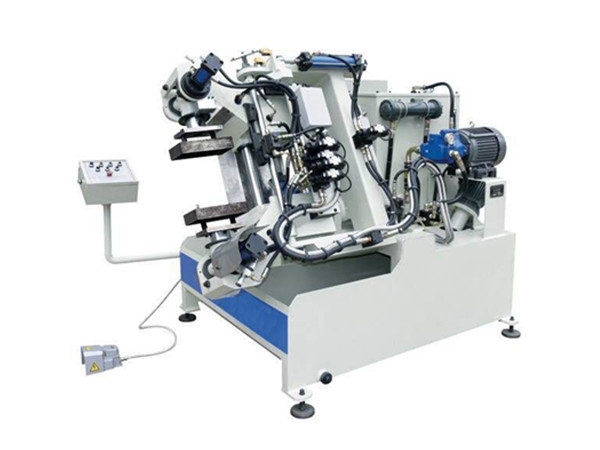

Brass Gravity Die Casting Machine


Main Function Features of Machinery

a. Big inclination angle of mold cavity, it can meet different product's casting technique.

b. Adjustable rotating speed of mold cavity,improve mold exhausting.

c. PLC control,full hydraulic drive,high dependability.

d. Urgent stop button in set on the machine body,it is easy to control.

e. It is convenient installing and regulating.

f. Brass gravity die casting machine can be plainly moved as a whole.

Biggest Size of The Mould

Φ450 mm

Heaviest Weight of The Mould

130 kg

Largest Merger Distance

≤ 250mm

Hydraulic Pressure

40-60 kPa

Angle of Lateral Casting

0° - 90°

Frontal Casting Angle

0° - 110°

Hydraulic Lube

163 L

Net Weight of The Whole Machine

1750 kg

Size of Appearance of Machine

2250 × 2160 × 1560 mm

Installing Top Core Available

Itinerary of Top Core 20 mm

Total Power

5.5 kw




Brass gravity die casting machine

Brass gravity die casting machine

Brass gravity die casting machine


Brass gravity die casting machine

Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
