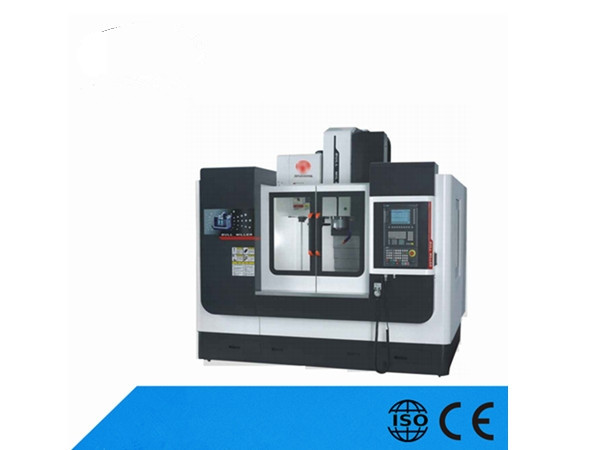

Gas Drilling Tapping Mailling Machine Mould Milling Machine Small Machining Center
High rigidity it adopts the structure of bed and body processing center the machine tools composed of base
Order(MOQ):
1Payment:
TT/LCMarket Price:
$11000Price:
$10000Product Origin:
CHINAColor:
GREYShipping Port:
NINGBOLead Time：
30 DAYSGas Drilling Tapping Mailling Machine Mould Milling Machine Small Machining Center
Structural characteristics
Slide seat worktable vertical column and vertical shaft box, The main basic parts are analyzed by structure reasonable structure and rigid.
Main shaft adopt Taiwan imports of rigid spindle unit high speed and high precision high spindle choose high-performance alloy steel material selects the NSK spindle dedicated p4 level high speed precision bearings NSK high-speed specified grease and use tum the spindle speeds 8000RPM spindle radial runout is less than 0.005/300 of the main shafe to choose which can realiza the center or spindle nose of water cooling sindle configuration center ventfunction can be blown off the handle the cones to glue some scraps and other sundry protect the life of spindle and handle.
X Y Z dire ction is to adopt long C3 level double nut preloading load of precisison ball screw servo motor with high torque and low inertia import elastic couping screw straight league scurew pre-stretching structure is used in bearing can eliminate drive back gap and thermal deformation precompensation airport long time operation influence on accuracy ensure the position precision and repeat positioning accuracy.
Technical parameters
| Projects | Unit | Tachnical parameters | |
| The X axis stroke | mm | 800 | |
| Y trip | mm | 500 | |
| The Z axis stroke | mm | 500 | |
| Spindle nose to work table distanse | mm | 150-650 | |
| the center of the mainshaft to the vertical guide rail | mm | 550 | |
| X/Y is fast forward | hardened rail | mm/min | 24000 |
| line rail | mm/min | 48000 | |
| Z-axis fastfeed | hardened rail | mm/min | 15000 |
| line rail | mm/min | 36000 | |
|
cutting progress |
mm/min |
1-10000 |
|
positioning accuracy |
mm |
0.005/300 |
|
Repeat postitioning accuracy |
mm |
0.003/300 |
|
table area |
mm |
1000x500 |
|
table bearing capacity |
kg |
600 |
|
t slot number width spacing |
mm |
3/18/150 |
|
maximum spindle speed |
rpm |
8000 |
|
spindle motor power |
kw |
7.5 |
|
nose taper of spindle |
bt |
40 |
|
dao database is |
the |
24 |
|
tool change time(knife to knife) |
SEC |
1.2-1.8 |
|
machine net weight |
kg |
5500 |
|
Installation dimensions |
mm |
2700x2300x2700 |
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a Gas Drilling Machine MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
