Complete Faucet Making Machine

Drilling and tapping machine

Manual Double Shaft Drilling&Tapping Compound Machine

Manual Double Shaft Drilling&Tapping Compound Machine

ZS4180X2 Manual Double Shaft Drilling& Tapping Compound Machine, We supply manual two spindle/shaft machine. Drilling and tapping . easy operate , and high working efficiency. Saving workers, and saving cost. Can process faucet, watermeter, valve, and other brass fittings, etc.

  • Item NO.:

    ZS4180X2
  • Order(MOQ):

    1
  • Product Origin:

    CHINA ,FUJIAN
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    15 DAYS
Product Details

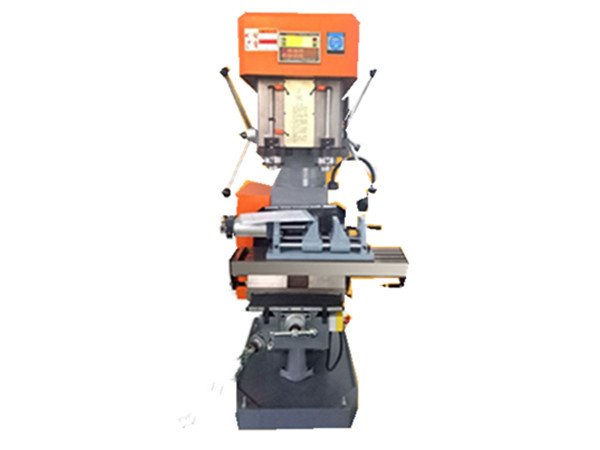

Manual Double Shaft  Drilling& Tapping Compound Machine

The electrical is adopted PLC programmable controller. This Drilling&Tapping Compound Machine can be applied in components processing in large quantity.The drilling and threading processing can be finishing once.The guiderail(guideway)quenches by superaudio frequency. Slide moving use with buffer,lowvibrate,and adopts pneumatic clamp,loading and unloading fastly.


Feature

1. The machine is driven by pneumatic cylinder, Which has advantages of high efficiency and quality in crimping force and speed.

2. The machine is fit for crimping many kinds of terminals.The die sets are interchangeable with our manual crimping tools.

So we can provide you all kinds of die sets for crimping.


Specification

Accessories:one air cylinder, two pipes .

Application air pressure 0.4-4Mpa

External Dimension: 465*182*135 mm

Range of open length: 105—156 mm

Cylinder internal size:80m

Cylinder travel :33mm

Drive mode: Pneumatic

Open mode:  single open


Function

1. Specially designed computer-controlled system,facilitating the operation.

2.Compact frame with pleasing appearance.

3. Applicable for processing parts of large batch,one-off drilling and threading extending high efficiency.

4. All sliding surfaces with lubrication device,ensuring high service life.

5. Pneumatic device for the workbench,extending reliable work and rapid react.



Main Components

1. Casted Iron 6 Pieces: Base, Column, Spindle Box, Lift Platform, Panel, Worktable

2. All the spindle bearings come from Japan.

3. Electrical System: See the components list from the manual( details in the attach)

4. Pneumatic System: ALL Pneumatic components are import from Korea.

5. Lubrication System: Manual Oil Injector.

6. Arbor (Tool Holder)

7. The Spindle Motor from Dasu Brand

8. MT4 Reamer sleeve, Tension spring, Air gun, claw wrench, Tool Box, including operation manual, guarantee Card, Certificate compliance, packing list.

9. Pneumatic Vice Q51125



Warranty

Provide one year warranty for whole machine, excluding the wearing parts below: tension spring, spring, tap screw(ForZS4150*2A/ZS4180*2A), tapexpectorator, synchro belt, motor.

Details not guarantee under the warranty:

Not agreed by the seller’s with the written approval, the buyer arrange other factory or customer change the machine parts andmaintain; any unexpected or natural disaster etc Force Majeure Event for equipment damaged, or the negligence or not handled properly by the company person.

Manual Double Shaft Drilling& Tapping Compound Machine






Parameter



Units

Model





ZS4180×2



SpindleDiameter



mm

¢110

Taper hole of spindle



NT



NT40

Travel of table



mm



250

Travel of spindle(drilling/tapping)



mm



140

Max drilling dia

mm

80

Max tapping dia

mm

80

Two spindle distance

mm

240

Speed of spindle



rpm

450/675

315/473

Dimension(L×W×H)



mm

1420×920×1800

Weight



kg



1400

Total power



kw

11

Air pressure required



pa

0.55-07pa






































Our Serviece:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
