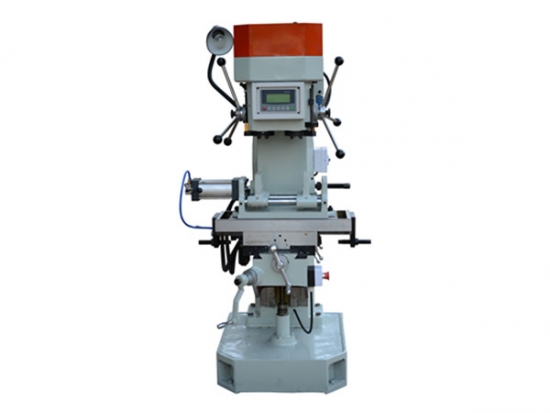

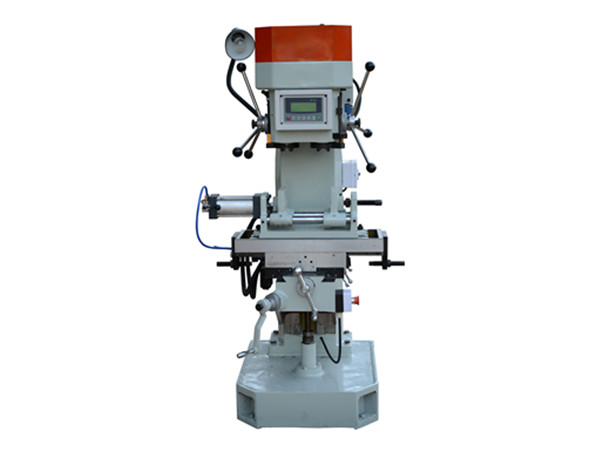

Two Shaft Machine for Faucets

ZS4132X2 Two Shaft Machine , We supply manual and automatic two spindle/shaft machine. Drilling and tapping . easy operate , and high working efficiency. Saving workers, and saving cost. Can process faucet, watermeter, valve, and other brass fittings, etc.

  • Item NO.:

    ZS4132X2
  • Order(MOQ):

    1
  • Market Price:

    $4000
  • Price:

    $3000/4000
  • Price Range:3000 - 4000/$1
  • Product Origin:

    CHINA ,FUJIAN
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    15 DAYS
Product Details

Two Shaft Machine for Faucets


Feature


The electrical is adopted PLC programmable controller. This two shaft machine can be applied in components processing in large quantity. The drilling and threading processing can be finishing once. The guide rail(guideway) quenches by super audio frequency. Slide moving use with buffer, low vibrate, and adopts pneumatic clamp, loading and unloading fastly.


Function

1. Specially designed computer-controlled system,facilitating the operation.

2.Compact frame with pleasing appearance.

3. Applicable for processing parts of large batch,one-off drilling and threading extending high efficiency.

4. All sliding surfaces with lubrication device,ensuring high service life.

5. Pneumatic device for the workbench,extending reliable work and rapid react.


Main Components

1. Casted Iron 6 Pieces: Base, Column, Spindle Box, Lift Platform, Panel, Worktable

2. All the spindle bearings come from Japan.

3. Electrical System: See the components list from the manual( details in the attach)

4. Pneumatic System: ALL Pneumatic components are import from Korea.

5. Lubrication System: Manual Oil Injector.

6. Arbor (Tool Holder)

7. The Spindle Motor from Desu Brand

8. MT4 Reamer sleeve, Tension spring, Air gun, claw wrench, Tool Box, including operation manual, guarantee Card, Certificate compliance, packing list.

9. Pneumatic Vice Q51125



Warranty

Provide one year warranty for whole machine, excluding the wearing parts below: tension spring, spring, tap screw(ForZS4150*2A/ZS4180*2A), tapexpectorator, synchro belt, motor.

Details not guarantee under the warranty:

Not agreed by the seller’s with the written approval, the buyer arrange other factory or customer change the machine parts and maintain; any unexpected or natural disaster etc Force Majeure Event for equipment damaged, or the negligence or not handled properly by the company person.

Two Shaft Machine for Faucets

Faucet Making Machine



Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
