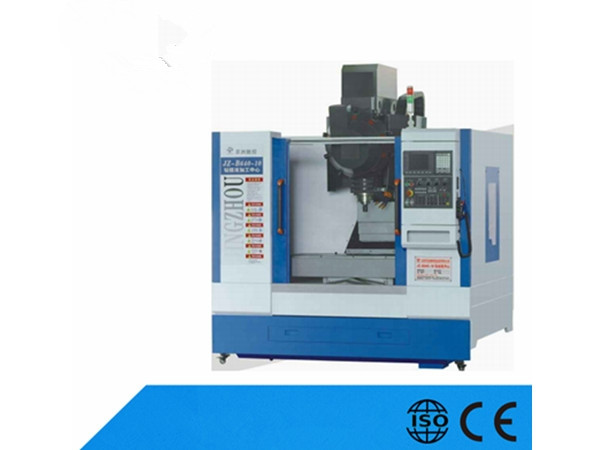

Gas Drilling Tapping Milling Machine

Gas Drilling Tapping Milling Machine Carving Drill Milling Machine Small Machining Center

The machine adopts high strength resin sand casting the wide guide base of

the processing center  the screw rod adopts 3210/4010 double nut ball screw ac servo motor drives.

  • Item NO.:

    JZ-B840-10
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Market Price:

    $11000
  • Price:

    $10800
  • Product Origin:

    CHINA
  • Color:

    BLUE
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

Gas Drilling Tapping Milling Machine Carving Drill Milling Machine Small Machining Center


Main configuration
Taiwan new generation bus system/nanjing da feng system
Clip arm lotus knife bank
Moble electronic handwheel
BT30 synchronous electric spindle
Taiwan silver roller rail/yintai yoller line rail
The USB interface
Direct link high-speed spindle
Skipball screw rod/upper silver ball screw rod
Lube rundown system
Resin sand casting
Three axis absolute value servo motor
Fully enclosed proccessing  area
Machine charaeteristics

The gas drilling tapping milling machine adopts high strength resin sand casting the wide guide base of
the processing center  the screw rod adopts 3210/4010 double nut ball screw ac servo motor drives.

The system can be selected to distribute that material mitssubishi baoyuan tianda UP to the wind Taiwan's new generation meets different user needs

The maximum hole of steel is 32
1 second time(knife to knife)
3mm depth of 50mm steel plate



Gas Drilling Tapping Milling Machine
Gas Drilling Tapping Milling Machine Gas Drilling Tapping Milling Machine Gas Drilling Tapping Milling Machine Gas Drilling Tapping Milling Machine
Projects unit JZ-B840-10 JZ-8640-10 JZ-B530-10
maximum hole diameter mm 20/30 20/30 20
maximum tapping diameter mm m16 m22 m16 m22 m16
maximum milling cutter diameter mm 50 50 50
spindle speed r.p.m 10-6000/8000 10-6000/8000 10-6000/8000
spindle motor power kw 3/6kw 3/6kw 3/6kw
The spindle taper hole mm BT30 BT30 BT30
Boring accuracy mm 0.01 0.01 0.01
Precision milling round mm 0.01 0.01 0.0.1
Tool change time second 1-1.6 1-1.6 1-1.6
X Y Z axis repeat positioning accuracy mm 0.01 0.01 0.0.1
Table stroke X Y Z axis mm/min 800X420X420 600X400X420 500X300X420
The table quickly moves X Y Z axis mm 36000 36000 36000
Distance between the working table and the main shafe mm 150-600 150-600 150-600
Toble size mm 1400x420 1400x420 1400x420
Table t-slot mm 3-18x140 3-18x140 3-18x140
Three axis servo motor p[ower kw x1.8 y1.8 z2.6 x1.8 y1.8 z2.6 x1.8 y1.8 z2.6
Triaxial connection mode   hard direct hard direct hard direct
Tree axis ball screw specification   x3210 y3210 z4010 x3210 y3210 z4010



x3210 y3210 z3210

Tree-axis linear guide specification mm x35 y35 z45 x35 y35 z45 x30 y30 z35
Cooling water pump power kw 0.55 0.55 0.37
machine siza mm 2600x2300x2400 2600x2200x2400 1950x1900x2350
machine tool gross weight kg about3600 about3000 about2400
maximum load weight of the table kg about400 about400

about250

Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.

We have after-sell service to supply all life-time machine maintance and repairment service.


FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
