Teflon Tape Machine Production Line

Automatic PTFE Tape Pad Printing Machine

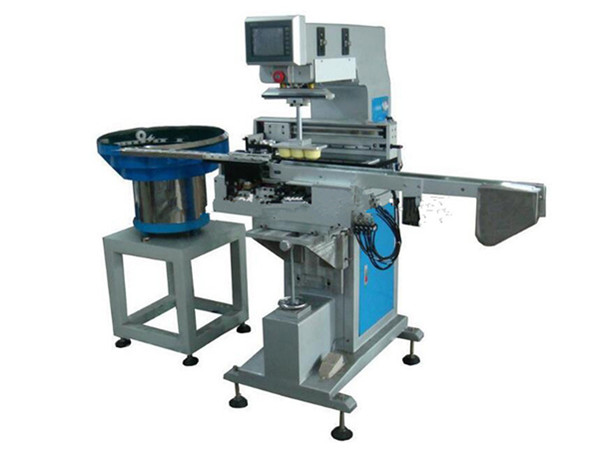

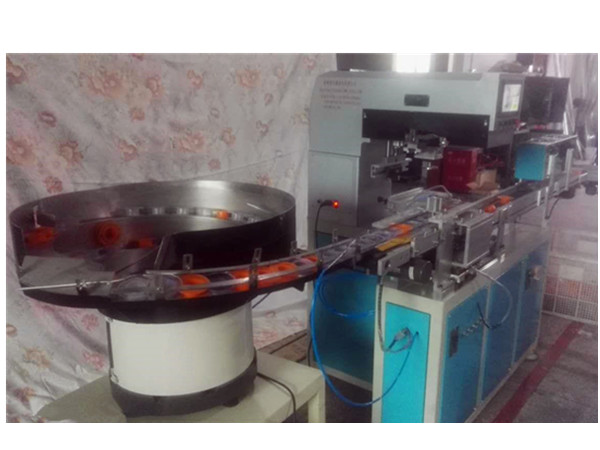

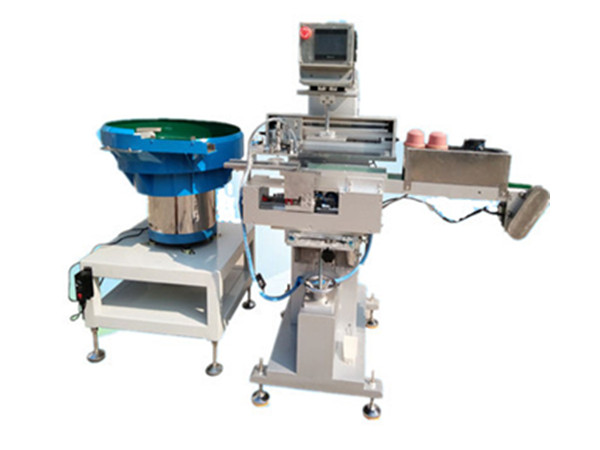

Automatic PTFE Tape Pad Printing Machine

Automatic PTFE Tape Pad Printing Machine

It's automatic feeding, printing, drying, uploading, and automatic cheeking.PLC, touch screen

  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    XIAMEN
  • Lead Time:

    30 DAYS
Product Details

Automatic PTFE Tape Pad Printing Machine


Technical parameter:


print size 85*200mm
print speed 2500 - 3000pcs/hr
machine dimension 1600*1200*1600mm
machine weight 200kg
power 220V
wattage 0.8kw


Functions:
1. using Mitsubishi PLC and WEINVIEW HMI to control actions;
2. auto feeding by vibrating disk;
3. auto baiting by manipulator;
4. auto drying system;
5. locaitng by KEYENCE sensor;
6. can print PTFE tape with 64, 74, 86mm diameter;

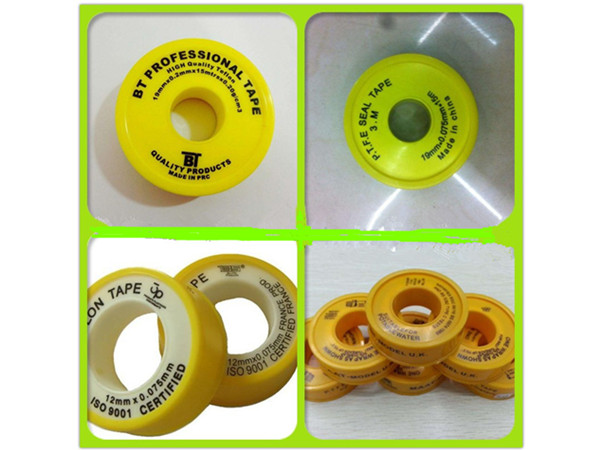

Printed Sample:

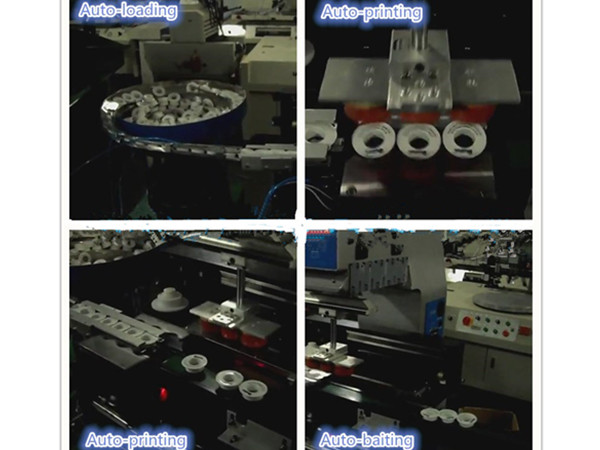

Machine working detail:
