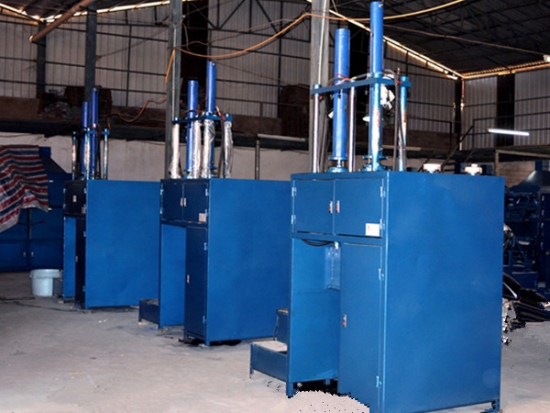

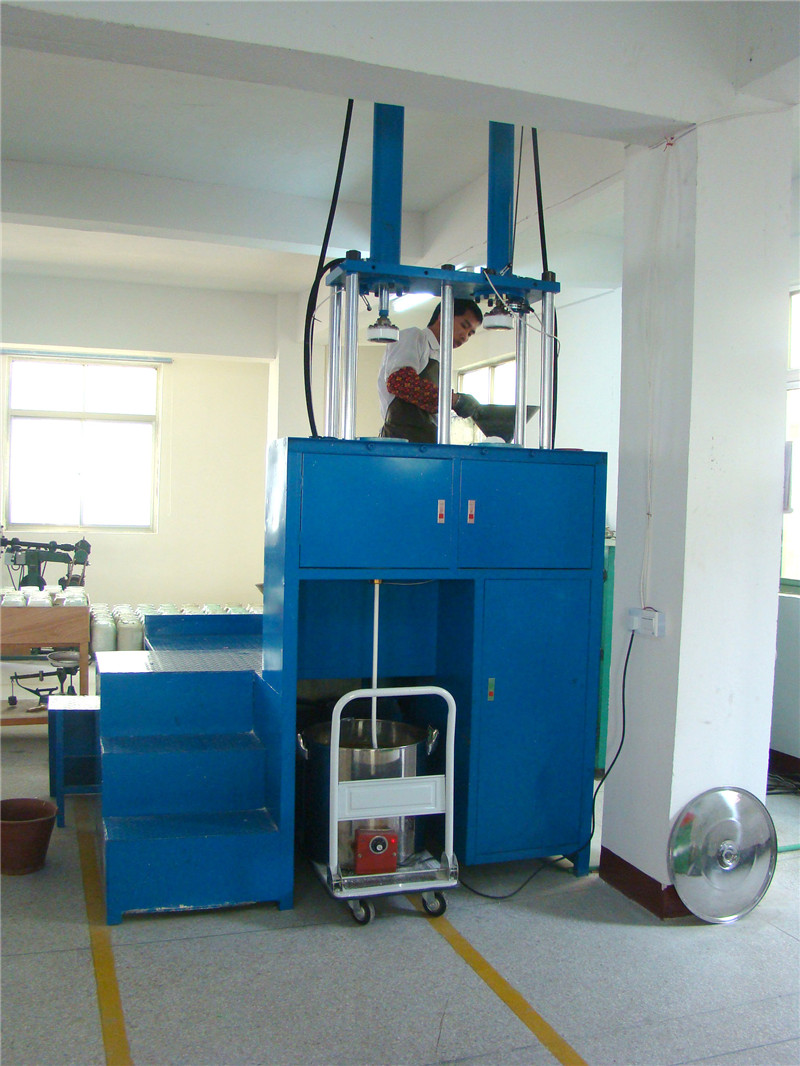

Automatic Vertical Extruder Ptfe Machine

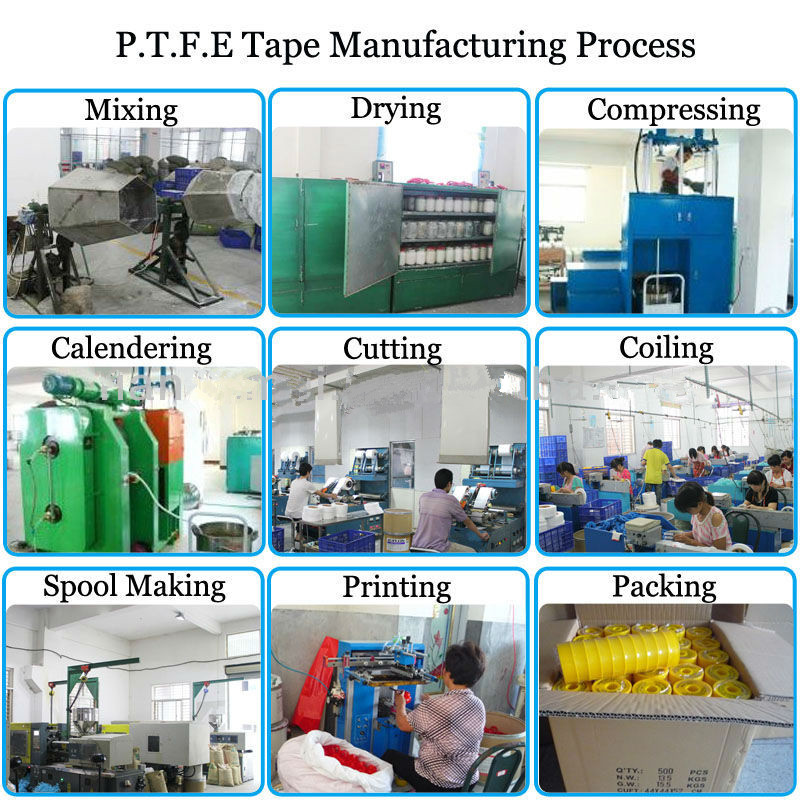

Ptfe Tape Cutting Slitting Machine It is automatic cutting the tape big roll into small roll . After the calender machine, making into big roll, then p ut the half –finished product into cutting machine.

Automatic Double-screw Teflon Tape Machine Putting the ptfe powder with kerosene into Automatic Mixing Materials Machine, making even. Blender Mamchine Funcation: mix the material. Putting the Teflon tape raw material with kerosene into Automatic Mixing Materials Machine, making even.

Ptfe Powder Heating Oven After mixing the ptfe powder, put into glass bottle, and put into oven for heating material, set 60-70 degree for 10 hours.

Calender machine Moving the Water bucket which including the Teflon tape strip into Mangler (Chain Rubber Machine）,then making half-finished product. ( big roll)

Automatic PTFE Tape Pad Printing Machine It's automatic feeding, printing, drying, uploading, and automatic cheeking.PLC, touch screen

Hydraulic Horizontal Three-Face Multihole Drilling Machine This machine is mainly used in processing Valve, Pump body, Auto parts, Construction machinery parts etc. It can work for many procedures of workpiece,such as End face hole, Median orifice, Bore-hole and Sphere. It worked with special PLC Controller,can realize automation, high precision, multi variety and mass production.

Vertical molding machine Features Its main function includes sand feeding and compacting, which is to feed the molding sand and compact them in the sand box with the different compacting methods,in order to make the sand mould having a certain strength during transportation and pouring.

Host structure The overall structure of the sawing machine mainly consists of the following components: 1. X-axis sliding table: drive the saw blade X-axis direction feed; 2. Y-axis sliding table: drive the workpiece Y-axis movement; 3. Z-axis column sliding table: drive the saw blade Z-axis direction; 4, rotary table: drive the workpiece 360 degrees turn; 5, chassis: main support and connection; 6, main shaft: 7.5KW frequency conversion cutting special spindle; 7, chip filter: chip collection, left dandruff; 8, cover: steel plate paint, the front door (up and down the door) for the pneumatic control automatic switch door.
