Brass Ball Valve Angle Valve Making Machine

Brass Ball Valve Angle Valve Making Machine

Innovative Design The RZT-4-F machine offers an outstanding performance which has never before been achieved in this price of worldwide;

  • Item NO.:

    RZT-4-F
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Market Price:

    $11000
  • Price:

    $10000
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

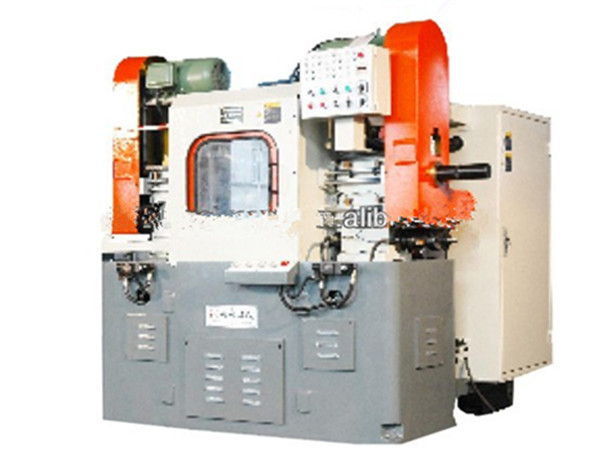

Brass Ball Valve Angle Valve Making Machine

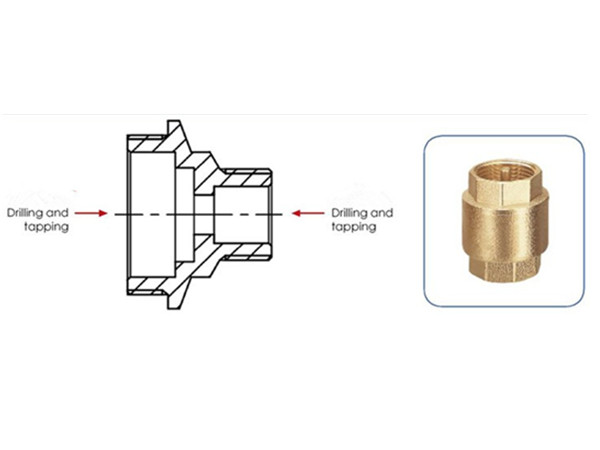

Compact structure : The integrated 4 spindles of a machine make it possible to process each ways of a manifold in one cycle, including drilling, tapping and facing the groove of seals rings;


High Flexibility : The processing range expanded from 2to 8 ways brass manifold, moreover the max center distance of work piece is 390mm;


Control Tech : It is controlled by the 10” colored touch panel, PLC and the fixture base plate is drove by servo motor;


Patents : It is owned the national patens of China: ZL 2010 101298043; ZL 2010 201376599;


World class accessories : To make our machine more stable and easier to maintaining, we adopted all of important accessories with world class.


Item Parameter
Model RZT-4-FT Two Way Four Spindles Lift Type Manifold Machine
Quantity of spindles 4 Spindles
Capability ½"~1½" Brass manifold, the max center distance "L" is 390mm
Production efficiency Depending on the ways of the manifold.
Spindle speed                  Drilling & facing spindle 1340 rpm
Tapping spindle* 680 rpm*
Travel Drilling spindle ≤110mm
Tapping spindle ≤60mm
Drilling &Facing spindle    X axle≤50mm,Z axle≤7.5mm
Fixture base pastle ≤390mm
Control system a 10" Touch palne and the PLC
Motor power Drilling & facing 3kW/4p×2
Tapping 2.2kW/6p×2
Hydraulic pump 3kW/4p×1
Feed drive            Spindles Hydraumatic
Fixture base pastle Servo motor, 6N-m
Hydraulic pressure 1.5~3.5mPa
Power supply 3 phases, AC380V/50Hz
Total Power 10kW
Dimension 2100mm×1800mm×2100mm
Net Weight 2300kg
* If tapping motors controlled by inverter, the speed range of the tapping spindle is 200 ~ 800rpm

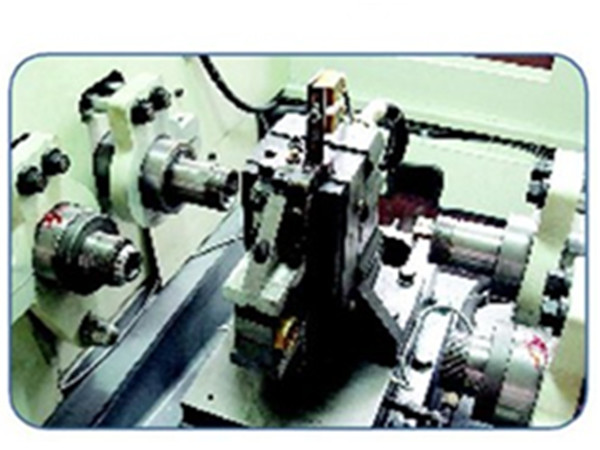

Drilling & Facing Spindle Machine







Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
