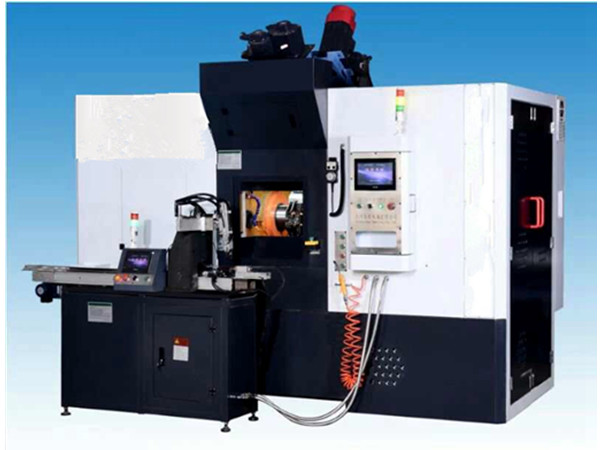

Brass Gate Valve Body Making Machine

  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Market Price:

    $110000
  • Price:

    $108000
  • Product Origin:

    CHINA
  • Color:

    BLUE
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

Brass Gate Valve Body Making Machine

SPINDLE Spindle sleeve specification : Φ110*330  mm
Spindle travel : 110*120 mm
Drilling spindle speed : 0-8000    r/m
Tapping spindle speed : 0-2500    r/m
Tool head speed : 0-1400    r/m
SERVO MOTOR Drilling : 3.75kw*4 set
Tapping : 4kw*3set
Tool head : 2.3kw*3set
FEED SERVO MOTOR Drilling : 110-6n 1.8kw*4set
Tapping : 110-6n 1.8kw*3set
Tool head : 110-6n 1.8kw*3set
Tool head : 80.4N 0.75kw *3set
OTHER Oil Motor : 2.2kw*1 set
Total Pawer : 53.95KW
Spindle shank specification : BT-40
Air pressure requirments : 8kg/cm³
L*W*H : 3300*3000*3000 MM
Weight : 8.2 T

Servo Transfer Rotary Machine Of Valve



rass Gate Valve Body Making Machine

Servo Transfer Rotary Machine Of Valve


Our Service:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
