Spherical Turning Lathe Machine

Spherical Turning Lathe Machine

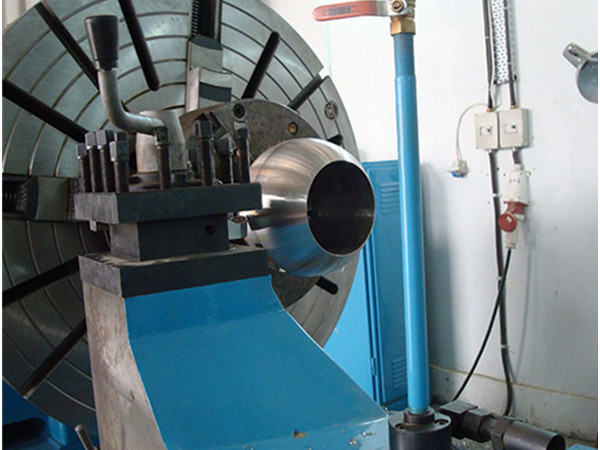

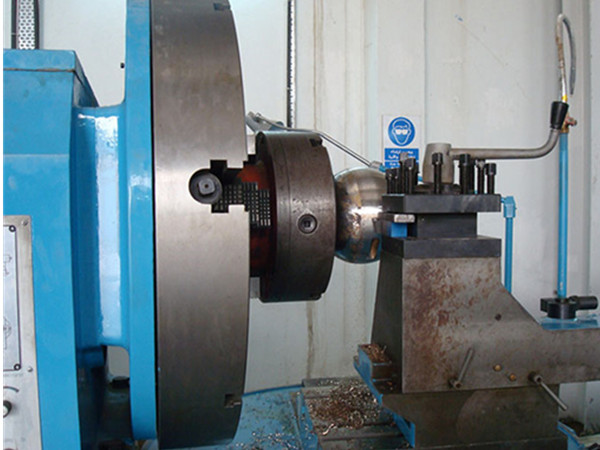

The spherical lathe is mainly used for turning the spherical surface and the ball valve. Processing spherical diameter is 550mm - 1800mm, which can realize grinding and other processing work. The bed adopts rectangular guide rail with good stability and good rigidity.The lathe has advantages such as high rigidity, high precision, and cutting force is bigger.

  • Item NO.:

    C6555
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    BLUE
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

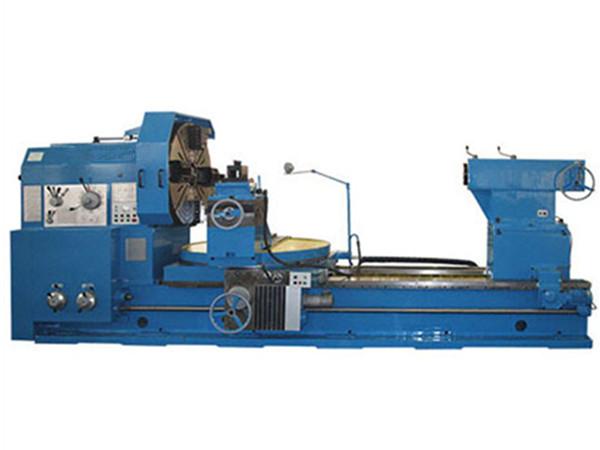

Spherical Turning Lathe


Precision automatic spherical turning lathe for machining parts of ball valves


Specification:

Item Unit C6555 C6595 C65160 C65180
Max. Dia. of spherical mm 550 900 1600 1800
Min. Dia. of spherical mm 50 260 1000 1200
Dia. of spindle hole mm 100 130 100 100
Taper of hole of spindle mm 120 140 140 140
No. of spindle speeds
18 21 21 21
Range of spindle speeds r/min 6-800 3.15-315 3.15-315 3.15-315
Spindle reverse speeds r/min 11-838 3.5-291 3.5 3.5-291
Swivel angle of toolpost ° ±90 ±90 ±55 ±55
Main power kw 11 22 30 30
  Weight t 4.4 12 25.4 27.4
  Length mm 3725 4700 6120 6220
  Width mm 1280 2500 2620 2720
  Height mm 1690 2000 2520 2620

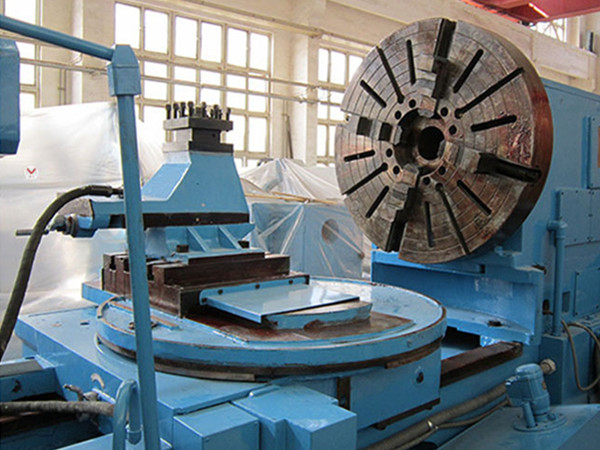

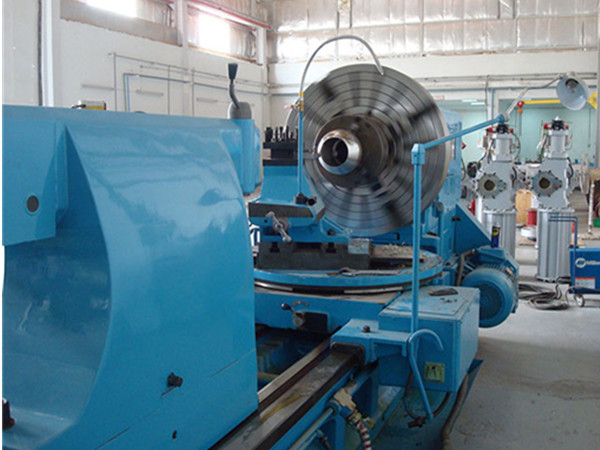

Spherical Turning Lathe Machine

Spherical Turning Lathe Machine



Delivery:

Water-proof plastic film package with foam protection in each corner.

Solid Seaworthy Wood Box Package with Steel Belt.

Save space as much as possible for container loading.

The package is wooden box which is heat treatment. Or pack it according to customers special request.

Our service:

Free replacing parts available in the warranty period.

Cost price replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time in the whole life of the machine.
Overseas after service center available in some region.
Engineer overseas service available on the requirement of customer(relative cost born by customer)
