Brass Spindle Making Machine

Flexible Die Making Gas Drilling Tapping Milling Machine

Flexible Die Making Gas Drilling Tapping Milling Machine

Flexible Die Making Gas Drilling Tapping Milling Machine adopts high strength resin sand casting, the wide guide base of the processing center, the screw rod adopts 3210/4010 double nut ball screw, ac servo motor drives.

  • Item NO.:

    JZ-A640-10
  • Order(MOQ):

    1
  • Payment:

    TT/LC
  • Product Origin:

    CHINA
  • Color:

    GREY
  • Shipping Port:

    NINGBO
  • Lead Time:

    30 DAYS
Product Details

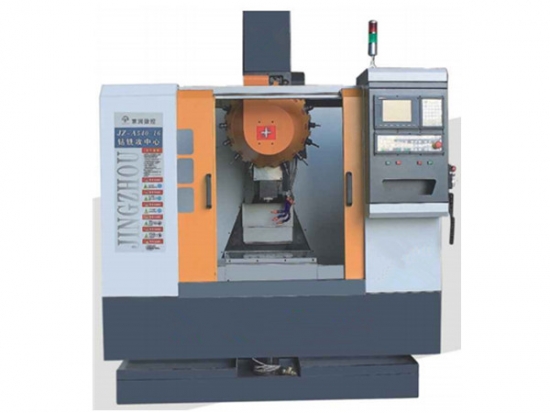

Flexible Die Making Gas Drilling Tapping Milling Machine



Main configuration:

Taiwan new generation bus system/nanjing da feng system

Synchronous high-speed spindle

High pressure cooling water pump

Taiwan silver roller rail/Yintai roller line rail

Three axis absolute value servo motor

Mobile electronic handwheel

Lube rundown system

BT30 spindle

Resin sand casting

Clip arm lotus knife bank

Skip ball screw rod/upper silver ball screw rod

Main electrical components France schneider

USB interface

Fully enclosed processing area




Maximum hole diameter mm Φ20/Φ30
Maximum tapping diameter mm M16/M22
Maximum milling cutter diameter mm Φ80
Spindle speed rpm 10-8000
Spindle motor power kw 3.7/7.5
The spindle taper hole mm BT30
Boring accuracy mm ±0.01
Precision milling round mm ±0.01
Tool change time second 1-1.6
X,Y,Z axis repeat positioning accuracy mm ±0.01
Table travel: X,Y,Z axis mm/min 600X400X420
The table moves quickly: X,Y,Z axis mm 36000
Distance between the working table and the main shaft mm 150-600
Table size mm 1200X420
Table t-slot mm 3-18X140
Three axis servo motor power kw X:1.8 Y:1.8 Z:2.6
Three - axis join mode   Straight league
Three axis ball screw specification   X:3210 Y:3210 Z:4010
Three - axis linear guide specification mm X:35 Y:35 Z:45
Cooling water pump power kw 0.55
Machine size mm 2200X2200X2400
Machine tool gross weight kg ≈3600
Maximum load weight of the table kg ≈400

Flexible Die Making Gas Drilling Tapping Milling Machine


Automatic Turning Center

Universal Lathe Machine

CNC Lathe Machine

High Strength Resin Sand Casting



Our Serviece:

Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.

FAQ:

Q: Are we a trading firm or a manufacturer?

A: We are a MANUFACTURER.

Q: What’s our payment mode?

A: L/C, T/T

Q: Can machines be customized?

A: YES.

Q: How long is the warranty period?

A: 12 months.
